Washing machine - How to replace the inverter electronic board

Рішення

Refer always to your product’s user manual safety information before any repair or maintenance operation. https://www.electrolux.com/support/user-manuals/

WARNING! RISK OF ELECTRIC SHOCK

Before any repair or maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

WARNING! RISK OF INJURY

Always take care when moving appliances. For heavy appliances it's safest for two persons to move it. Always use safety gloves and safety footwear. Wear safety gloves at all times to protect from cuts from sharp edges.

WARNING! RISK OF EYE INJURY

Wear safety glasses if you perform maintenance or repair work involving springs.

WARNING! RISK OF PINCHING

Wear safety glovesif you perform maintenance or repair work involving belts.

WARNING! CHOKING HAZARD

Small parts not for children under 3 years. Keep all small parts and packaging out of reach of children.

Only adults should use or install the product.

Before any maintenance operation, turn off water supply to the appliance. Always empty the appliance of all the water. Any maintenance should be carried out with the appliance standing upright. Residual water could damage electronics if the appliance is placed on any of its sides.

Make sure to use the product only for its designated purpose and verify that it is a compatible part for the intended product.

Do not use or install the product if damaged.

Please note that self-repair or nonprofessional repair can have safety consequences if not done properly and might void the warranty.

Possessing the necessary know-how is essential.

HOW TO REPLACE INVERTER, ELECTRONIC BOARD

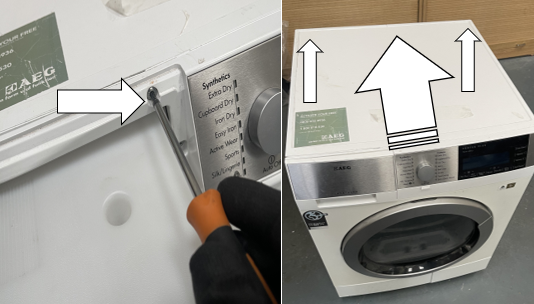

1. Unscrew the Torx 20 screw in the condenser drawer housing. Then unscrew the two Torx 20 screws on the back of the appliance lid and slide back to release.

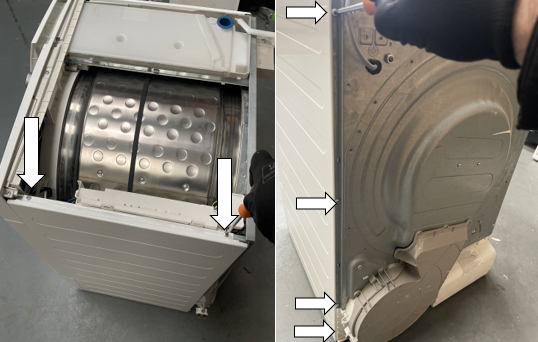

2. Unscrew the four Torx 20 screws on the back of the right-side panel and the two Torx 20 screws on the top of the right-side panel.

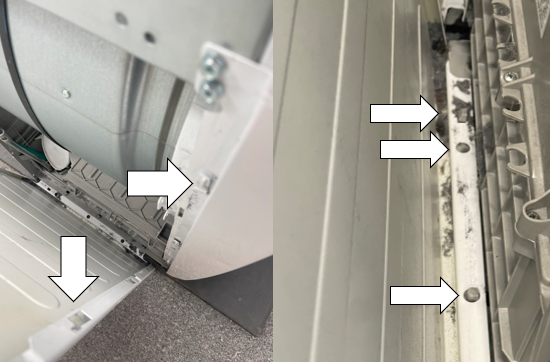

3. To remove the right-side panel, pull the panel up and away from the body of the machine to release the panels from the securing tabs at the bottom and on the side.

4. NOTE: When reinstalling slot, the side panel into the three bottom tabs and the three side tabs to ensure the panels flush with the body of the appliance.

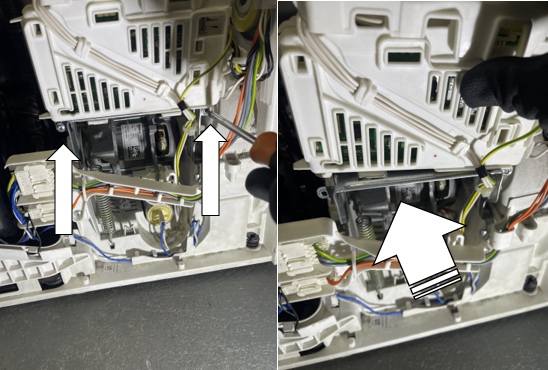

5. Unscrew the two Torx 20 screws for the inverter board and push forward into the appliance to release the inverter from the inverter board bracket.

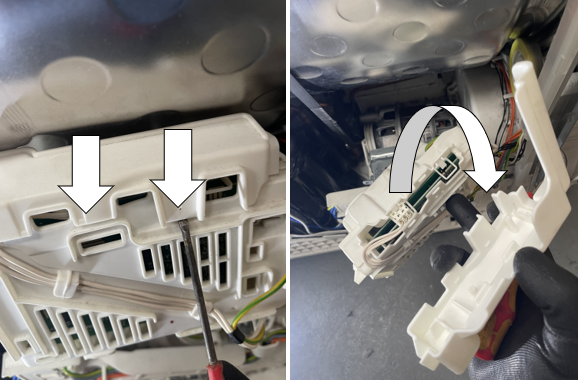

6. Use a small flat bladed screwdriver to release the clips for the inverter board wiring cover and slide it up to remove the inverter pcb.

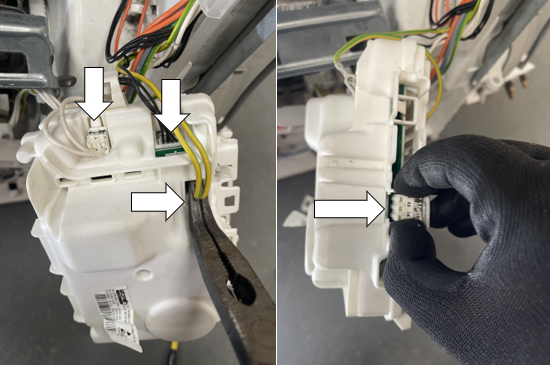

7. Carefully disconnect wiring connectors from the inverter. Be careful not to damage the connections.

NOTE: Ensure that all wiring connectors are correctly fitted during reinstallation. Be careful not to damage the wiring connectors. It is recommended to take a photo before disconnecting to ensure all wiring is refitted into the correct position.

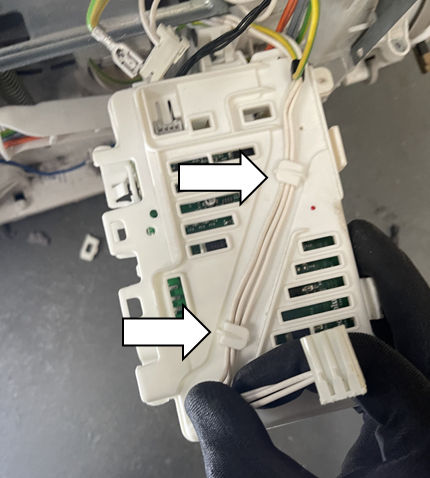

8. Carefully disconnect wiring harness from its retaining clips on the inverter board.

9. When assembling repeat steps in reverse order.
